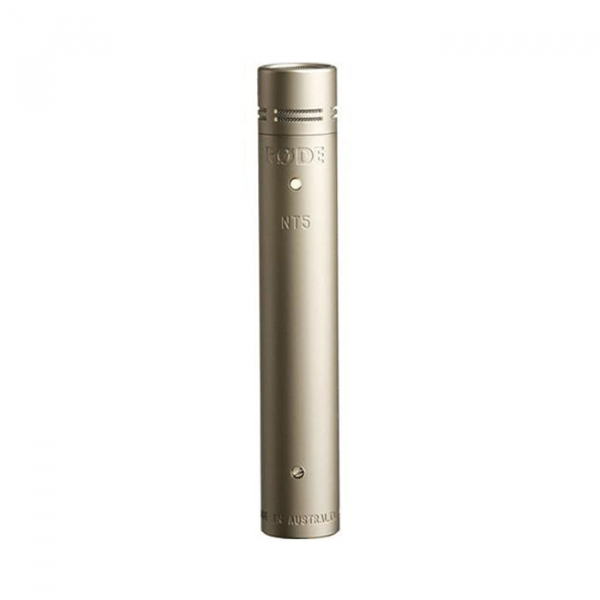

The Rode NT5 is a small diaphragm microphone featuring full frequency response and low-noise output circuitry. Designed for general instrument recording and sound reinforcement.

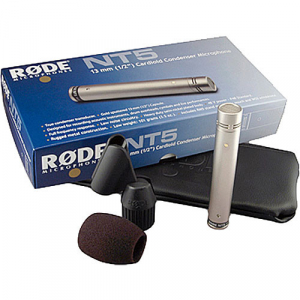

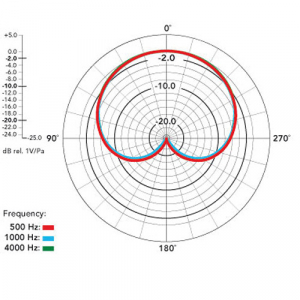

The cardioid polar pattern effectively minimizes audio at the off-axis sections, reducing noise caused by leakage, monitors, additional instruments, etc. The NT5 offers a frequency response of 20 Hz to 20 kHz allowing the microphones to be used in a wide variety of applications such as drum overhead miking, stereo capturing of instruments, vocal capturing, etc. The NT5 is powered via +24V or +48V phantom power. The package includes a windscreen, mic clip, and custom case.
Thông số kỹ thuật
Rode NT5 Specs
Microphone
| Form Factor |
Stand/Boom Mount |
| Sound Field |
Mono |
| Operating Principle |
Pressure Gradient |
| Capsule |
Condenser |
| Diaphragm |
0.5" / 12.70 mm |
| Polar Pattern |
Cardioid |
| Orientation |
End Address |
| Pad |
None |
| High-Pass Filter |
None |
| Tone Adjustment |
None |
| Indicators |
None |
| On-Board Controls |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
143 dB SPL |
| Impedance |
100 Ohms |
| Sensitivity |
-38 dB |
| Output Level |
13.9 mV |
| Dynamic Range |
128 dB |
| Signal-to-Noise Ratio |
78 dB A-Weighted |
| Equivalent Noise Level |
16 dB A-Weighted |
Connectivity
| Output Connectors (Analog) |
1 x XLR 3-Pin (on Mic) |
Power
| Operating Voltage |
24 V
48 V |
Physical
| Color |
Nickel |
| Mounting |
Mic Clip (Included) |
| Construction Material |
Brass |
| Dimensions |
ø: 0.79 x L: 4.65" / ø: 20 x L: 118 mm |
| Weight |
0.22 lb / 100 g |
Packaging Info
| Package Weight |
0.865 lb |
| Box Dimensions (LxWxH) |
10.6 x 5.35 x 2.1" |
